SAFETY SPEED

SAFETY SPEED 6480-20C Panel Saw Portable Panel Saw with Wheels, Folding Stand, Dust Outlet & Saw Blade

Category Woodworking Machines
SSM-6480-20C SSM-6480-20C
SSM-6480-20C SSM-6480-20C
SSM-6480-20C SSM-6480-20C
Call for price
Starting from
$2,199.00 / EA
/
- +
Check stock in other branches
Pick-Up this item from: Industrial Tool & Supply, Logan
Add to quick list
Compare
SAFETY SPEED

SAFETY SPEED 6480-20C Panel Saw Portable Panel Saw with Wheels, Folding Stand, Dust Outlet & Saw Blade

Item Code: SSM-6480-20C

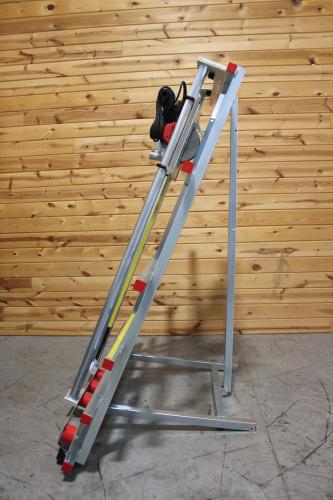

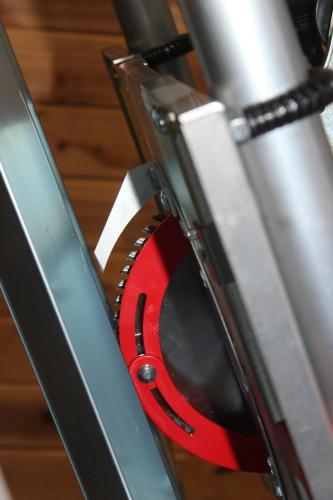

The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32in, and a 1.75in cut depth, the 6480-20C is eerily similar to Safety Speed’s flagship C4 panel saw while having optional accessories built into the price. These include a folding stand and wheels allowing you to move your 6480-20C around your shop, as well as well as a general-purpose blade, and a dust bonnet. The dust bonnet allows you to connect your machine to a dust collection kit and vacuum.


Max. Crosscut
50"/1270mm
Max. Rip Cut
96"/2450mm
Cut Depth
1 ¾"/45mm
Cut Accuracy
1/32"/.8mm
Frame Length
60"/ 525mm
Rollers
8
Motor volt and amperage
15 amp, 120V, 7.5 amps, 220V
15 amp, 120V
Shipping Weight
177 lbs/80 kg
Motor Manufacturer
Milwaukee Tool


$189 shipping
Category Woodworking Machines

MANUAL
PARTS LIST
6400 and 6800 Vertical Panel Saws: Safety Speed Manufacturing
The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32in, and a 1.75in cut depth, the 6480-20C is eerily similar to Safety Speed’s flagship C4 panel saw while having optional accessories built into the price. These include a folding stand and wheels allowing you to move your 6480-20C around your shop, as well as well as a general-purpose blade, and a dust bonnet. The dust bonnet allows you to connect your machine to a dust collection kit and vacuum.


Max. Crosscut
50"/1270mm
Max. Rip Cut
96"/2450mm
Cut Depth
1 ¾"/45mm
Cut Accuracy
1/32"/.8mm
Frame Length
60"/ 525mm
Rollers
8
Motor volt and amperage
15 amp, 120V, 7.5 amps, 220V
15 amp, 120V
Shipping Weight
177 lbs/80 kg
Motor Manufacturer
Milwaukee Tool
$189 shipping
